Model 2006
Hands free 3-way communication system
DOWNLOAD LEAFLET
DESCRIPTION
In the desktop console you can find the command to choose the zone and control the speakers volume. It contains calibration commands, amplification integrate circuit, automatic transmission and reception attenuation. It has a high power output and a background noise level constant monitoring. On hold mode mutes the transmission on both sides ensuring total privacy. Easy installation.
DESCRIPTION
In the desktop console you can find the command to choose the zone and control the speakers volume. It contains calibration commands, amplification integrate circuit, automatic transmission and reception attenuation. It has a high power output and a background noise level constant monitoring. On hold mode mutes the transmission on both sides ensuring total privacy. Easy installation.
MORE INFORMATION:

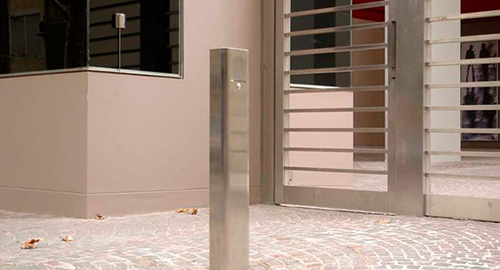

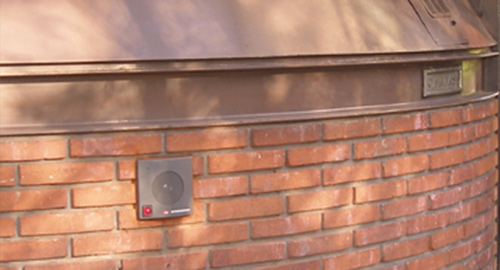

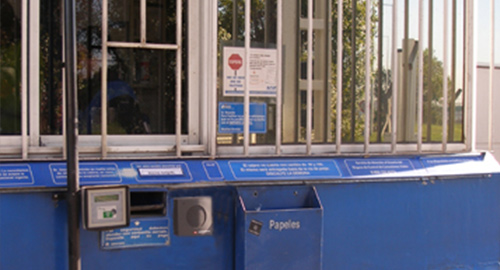

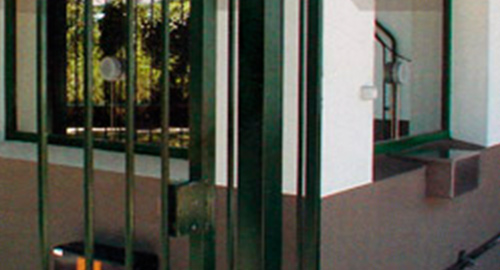

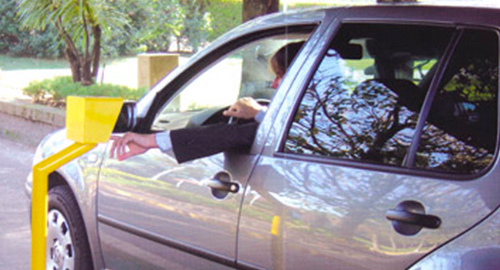

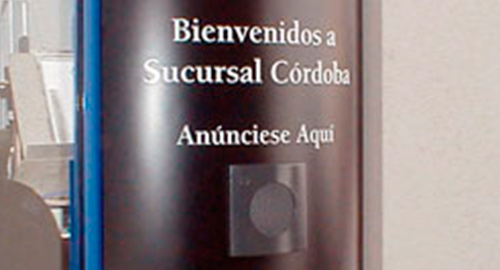

Ideal for installation in:
2 way security cabin / Highway toll booths / petrol station payment terminals / Gated communities, country clubs, sport clubs entrance, etc / car parks / building car entrance.
TECHNICAL FEATURES:
Specifications:
- Power output: 5 watts per channel
- Distortion: less than 2%
- Frequency response: equalized for maximum intelligibility
- Reception: 20 dB compression
- Transmission: Vox system
- Operator-side microphone: cardiod gooseneck microphone
- External microphone: electret omnidirectional microphone
- Individual power supply
MOUNTING:
No drilling is required.
Cables are ducted under or over the screen without comprising the glass integrity.
Ideal for installation in:
2 way security cabin / Highway toll booths / petrol station payment terminals / Gated communities, country clubs, sport clubs entrance, etc / car parks / building car entrance.
TECHNICAL FEATURES:
Specifications:
- Power output: 5 watts per channel
- Distortion: less than 2%
- Frequency response: equalized for maximum intelligibility
- Reception: 20 dB compression
- Transmission: Vox system
- Operator-side microphone: cardiod gooseneck microphone
- External microphone: electret omnidirectional microphone
- Individual power supply
MOUNTING:
No drilling is required.
Cables are ducted under or over the screen without comprising the glass integrity.
| Model | Dimensions | Width | Height | Length |
| 2006 | Desktop Console | 13 cm. | 7 cm. | 18 cm. |
| External Baffle | 11,5 cm. circumference | 4 cm. | ||
| Power Supply | 7 cm. | 5,5 cm. | 10,5 cm. |
